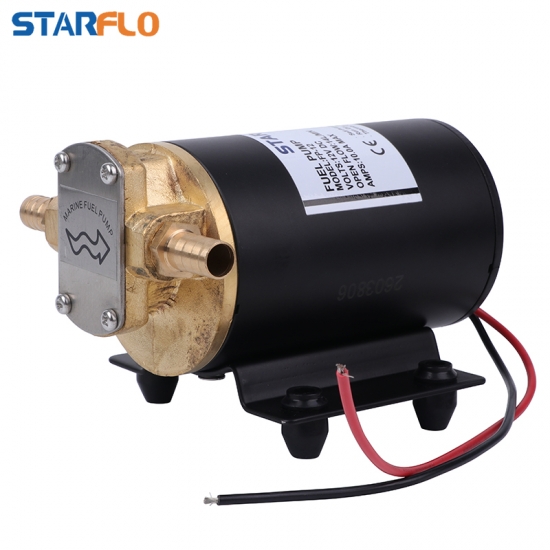

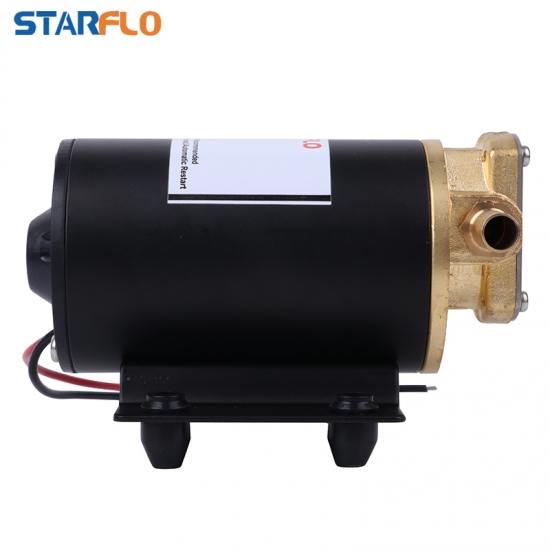

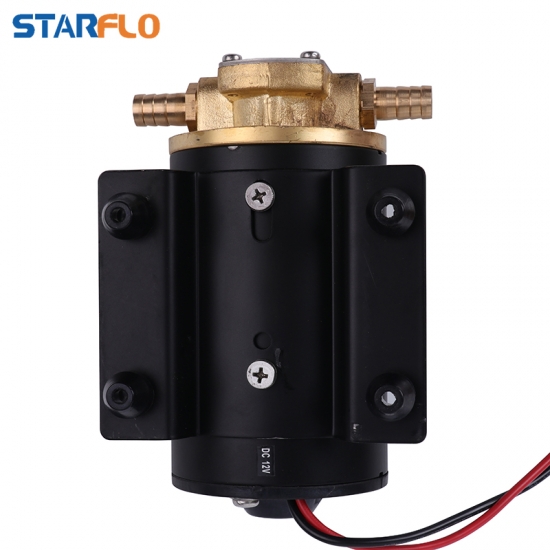

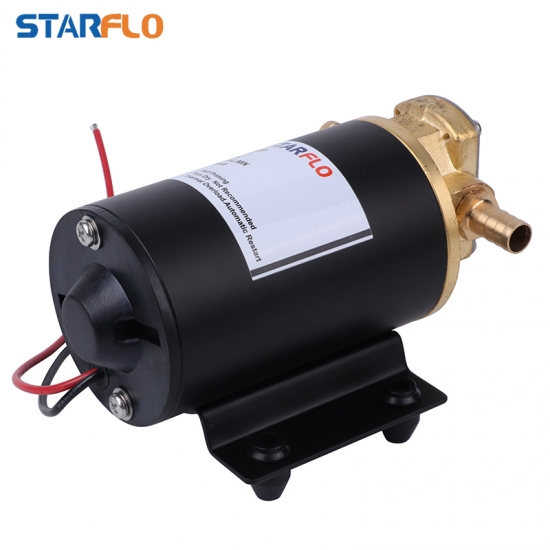

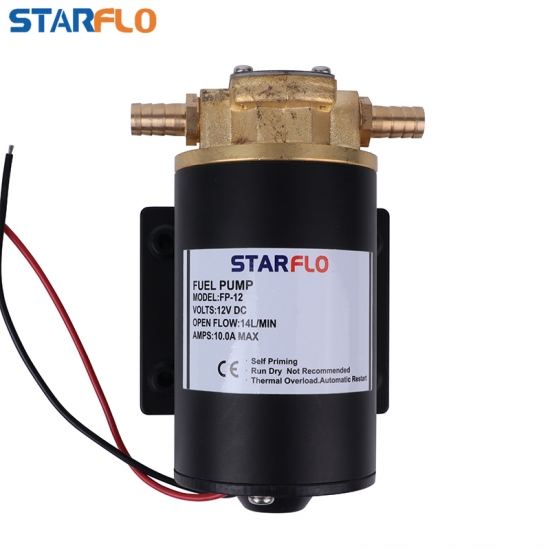

HEAVY DUTY REAR MOUNT OIL GEAR PUMP 12V SCAVENGE REPLACE STS WHITE
PRODUCT DESCRIPTION
This pump is a gear pump, the best kind of pump for oil scavenging.
Bronze gears. Brass pump body. No diaphragms to fail like our competitors pumps.
Gear design for maximum scavenge.
12v DC with splash resistant wiring. Two 1/2" barbed fitting included.
The same oil that it scavenges also lubes up its gears.
This is a racing part, please do not expect the product to be quiet.
These pumps are suitable for remote systems as oil scavenge pumps. In this case the engine supplies
the oil pressure and the pump simply returns the oil to a point above the sump level.
FEATURES
- Self Priming
- Corrosion resistance
- Soft Noise Absorbing Mounts
- Pump body: Brass
- Shaft: Steel
- Seal: Fluoroelastomer lip seal
- Voltage: 12V DC
- Flow capacity: 14 Litres per minute (3.7 Gallons per minute)
- Self-priming - Max. lift 3M
- Rugged bronze body and stainless steel shaft
- Can be mounted in any position
- Includes 2 x 12mm (1/2") brass hose tails Twin core wire Current Draw: 6 Amp (max. 10 Amp)
- Dimensions: Length 155.5mm x Width 119mm x Height 103mm
- Approvals: CE
TECHNICAL DATA
Model
Volt
Flow Rate
Max Lift
Amps(A)
Max Draw(A)
Packing Size(mm)
N.W/G.W(kgs)
FP-12
12
14LPM
3M
7A
10A
215*135*110
2.48/2.68
FP-24
24
14LPM
3M
4A
6A
215*135*110
2.48/2.68
