STARFLO Performance Oil Scavenge Pump Mount Turbo Rear Bronze 12V Gear Pump
  • Brand:

    STARFLO
  • Item NO.:

    FP-24
  • Payment:

    TT , WESTERN UNION, PAYPAL
  • Product Origin:

    Fujian,China(Mainland)
  • Shipping Port:

    FUZHOU,XIAMEN ,SHANGHAI PORT
  • Lead Time:

    2-3 days for sampel,7-10 working days fo
Inquire
  • Product Detail

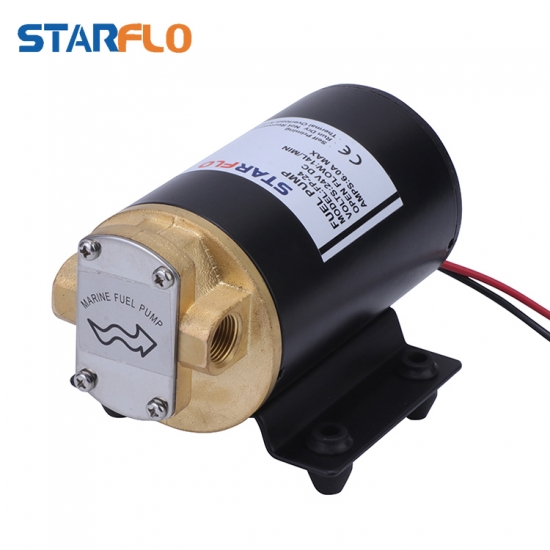

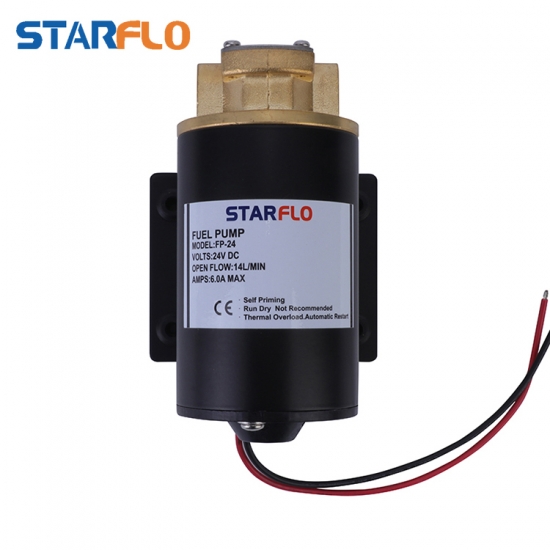

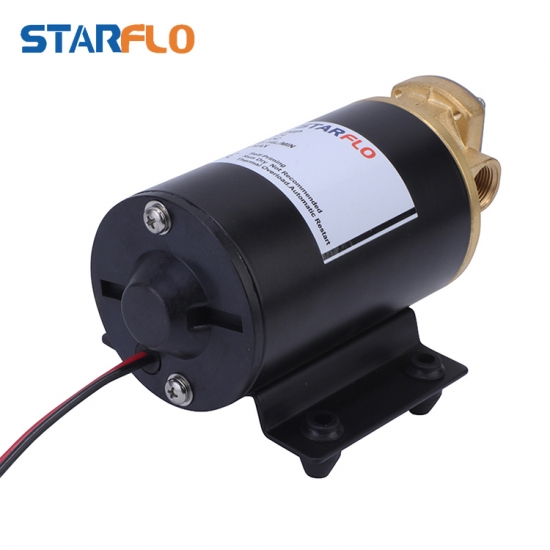

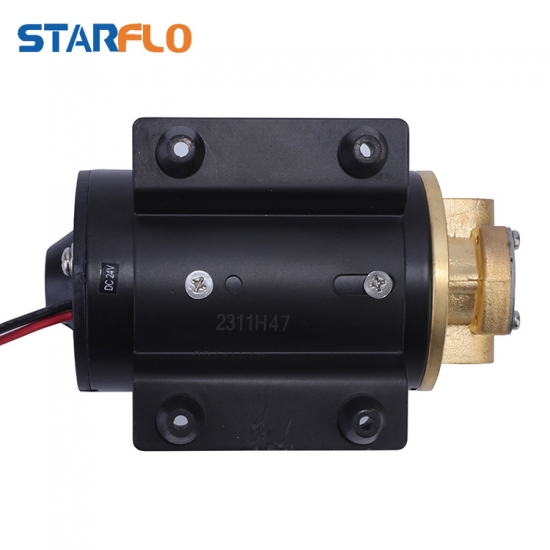

STARFLO Performance Oil Scavenge Pump Mount Turbo Rear Bronze 12V Gear Pump

APPLICATION:

Oil scavenging has always been an issue.
You might have 50 psi feeding but the slightest restriction in the "drain" will immediately
send oil past the exhaust seals, burning up oil . In the case of remote mounted
systems, rear mounted systems, or in systems mounted below the engine oil level, some
form of positive scavenging has to be engineered. That is where this pump comes into play.
This pump is a gear pump, the best kind of pump for oil scavenging. Bronze gears.
Brass pump body. No diaphragms to fail like our competitors pumps. Gear design for maximum scavenge.

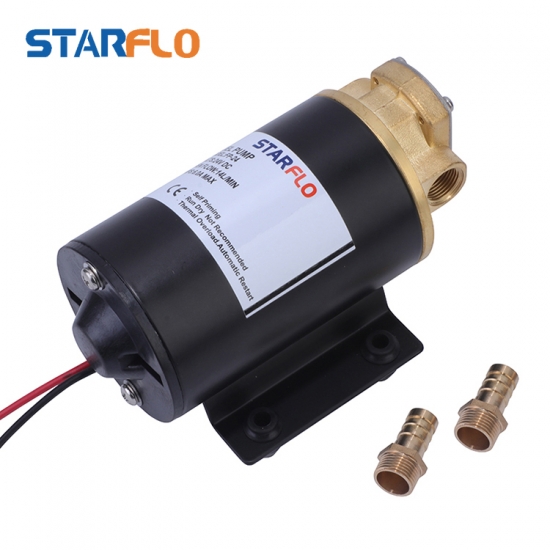

12vdc with splash resistant wiring. 3/8" female entry and exit with 1/2" barbed fitting included.
The same oil that it scavenges also lubes up its gears.
This is a racing part, please do not expect the product to be quiet.
These pumps are suitable for remote systems as oil scavenge pumps. In this case the engine supplies
the oil pressure and the pump simply returns the oil to a point above the sump level.
Can also be used for various other applications. (Oil transfer, water pump, etc)

DESCRIPTION:

Motor: DC 12v
Flow Rate: 3.7 GPM
Ports: 3/8 Female JIC
1/2?Barbed Fittings Incuded
Amps: 6A 24v @ 0PSI
Self priming: 5 feet
Lift: 15 feet
Color: Black
Dimensions:
Length: 6.25"
Motor Diameter: 3"
Base: 3" x 4"



TECHNICAL DATA

Model Volt Flow Rate Max Lift Amps(A) Max Draw(A) Packing Size(mm) N.W/G.W(kgs)
FP-12 12 14LPM 3M 7A 10A 215*135*110 2.48/2.68
FP-24 24 14LPM 3M 4A 6A 215*135*110 2.48/2.68

MORE INFORMATION, PLS FEEL FREE TO  SEND EMAIL TO US !
