12 volt Fuel Transfer Pump Electric Oil Dispenser
  • Brand:

    STARFLO
  • Item NO.:

    FP-12
  • Payment:

    TT , WESTERN UNION, PAYPAL
  • Product Origin:

    Fujian,China(Mainland)
  • Shipping Port:

    FUZHOU,XIAMEN ,SHANGHAI PORT
  • Lead Time:

    Ship in 7 days after confirm
Inquire
  • Product Detail

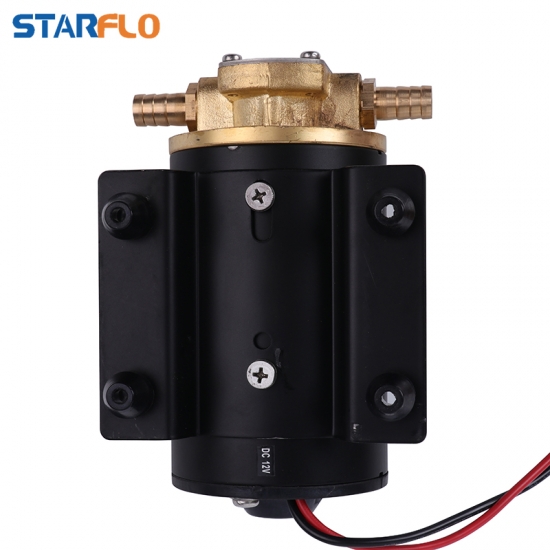

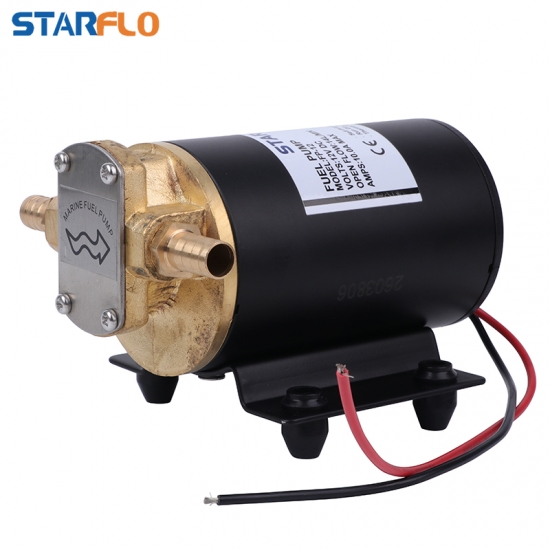

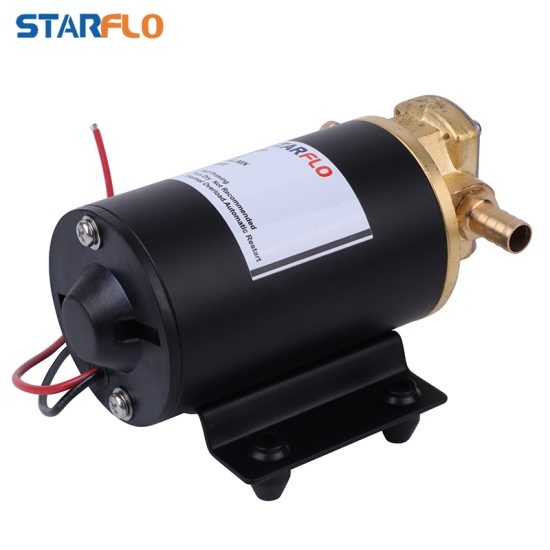

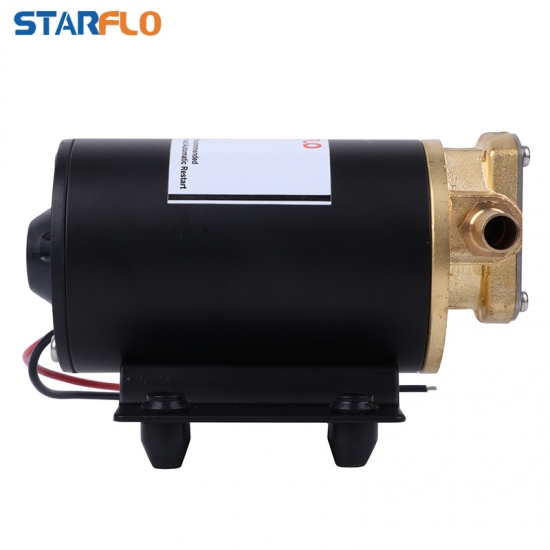

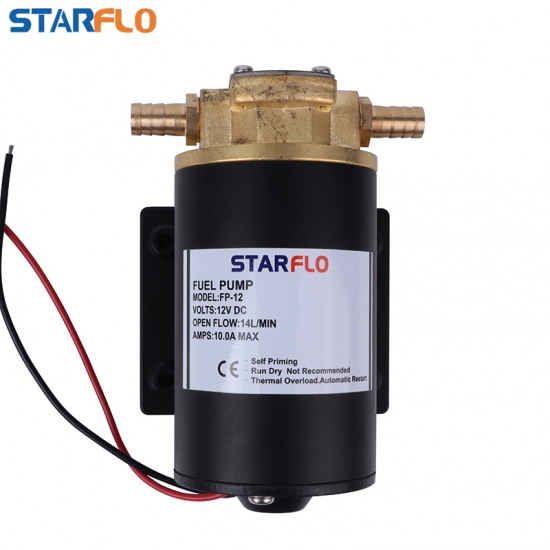

14LPM Low Pressure Electric Fuel Pump

STARFLO  gear pumps are positive displacement pumps, capable of operation in either direction. They may be used to perform

a variety of oil transfer applications (DO NOT USE FOR GASOLINE or other combustible fluids). We use robust motors, stainless

steel shafts and rugged metal gears. Our tough design provides performance that you can rely on for years.



Body Materials
Bronze
Impeller
Neoprene Compound
Seal
Lip Type
Ports
3/8''Female Thread,1/2''Barbed Fittings Included
Voltage
12V DC
Amp Draw
 Max.10.0Amps
Fuse Size
15.0 Amps
Motor Type
Permanent Magnet Type Fully Enclosed Stainless Steel
Self-priming
3.0m vertical lift
Pressure
Can generate pressures up to 2bar (30psi)

TECHNICAL DATA

Model: FP-12


Volt:12v

Flow:14.0LPM/3.68GPM

Max.lift:3M

Amps:7A   Max.draw:10A

Packing:21.5*13.5*11cm

N.W./G.W:2.48/2.68kgs


Sample order is very welcome to have a test, if need more technical specification, pls send email to us !
