1-30L/MIN ELECTROMAGNETIC FLOW SENSOR
PRODUCT DETAILS
Flow sensor consists of magnetic core, rotating impeller, external casing and sensor. Flow through the sensor activates the magnetic core to trigger hall action, with pulse signal output, it is a liquid control equipment.
Model: SF-001
Max Switch Current: 10 MA
Max Voltage:DC 3-18V
Working Range:1-30L/min
Max Water Pressure:1.75Mpa
Male Thread Size: G1/2
Total Size: 62*35*33mm
Main Material: Plastic
Color: Black
Weight :0.2KG
Applications
Water flow sensor is used in the control of water circulation, water charging and discharging, water heating, water pump switch on and off of solenoid valve, or powering on and off of water discharging for electric water heater, solar energy water heater, air condition and other water systems.
Features
Imported components of the magnetic switch
Sample working principles
Highly reliable

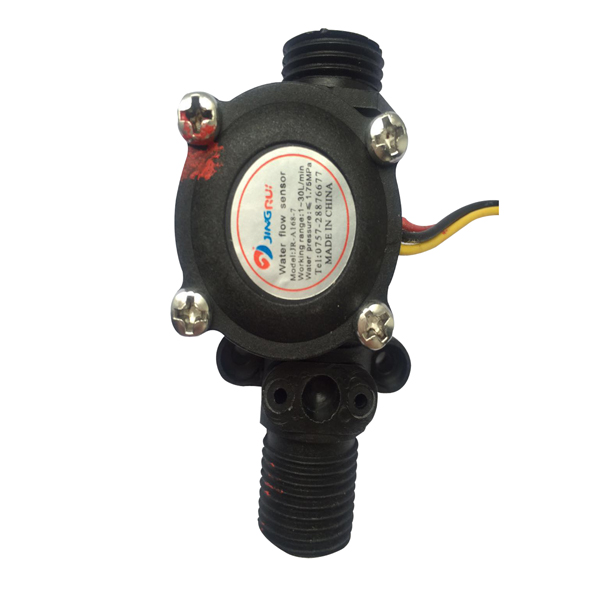

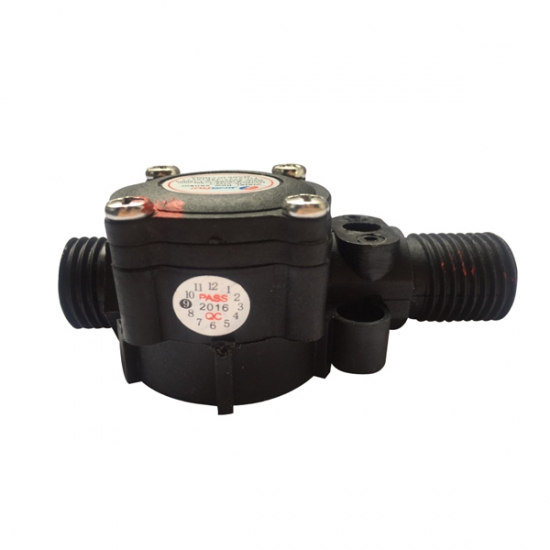

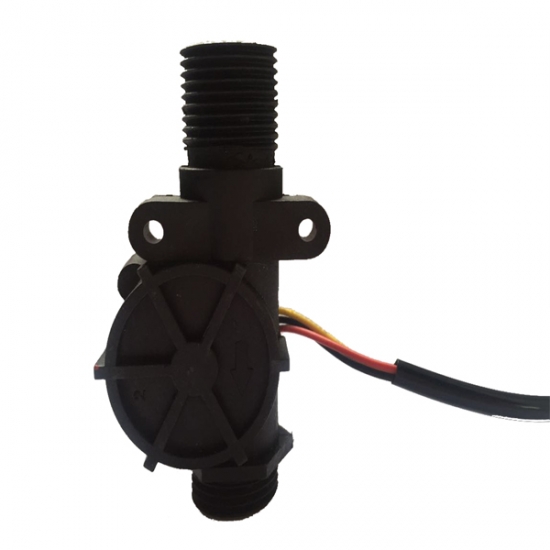

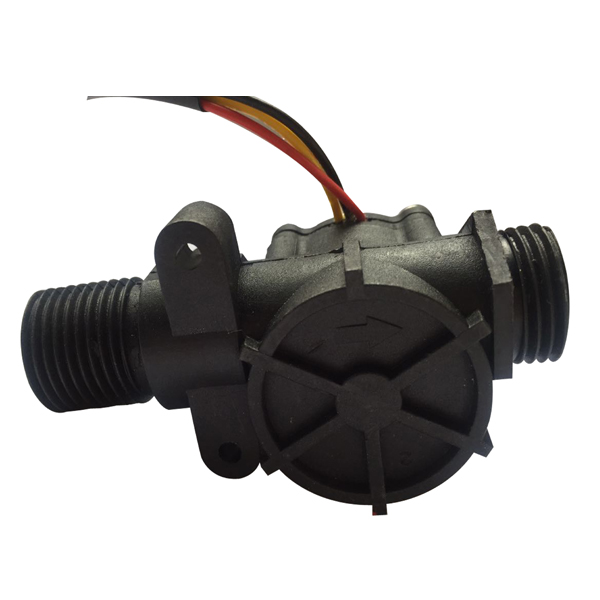

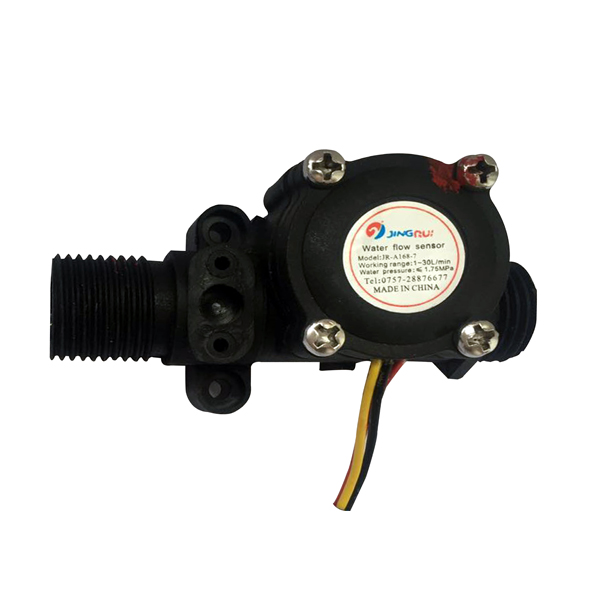

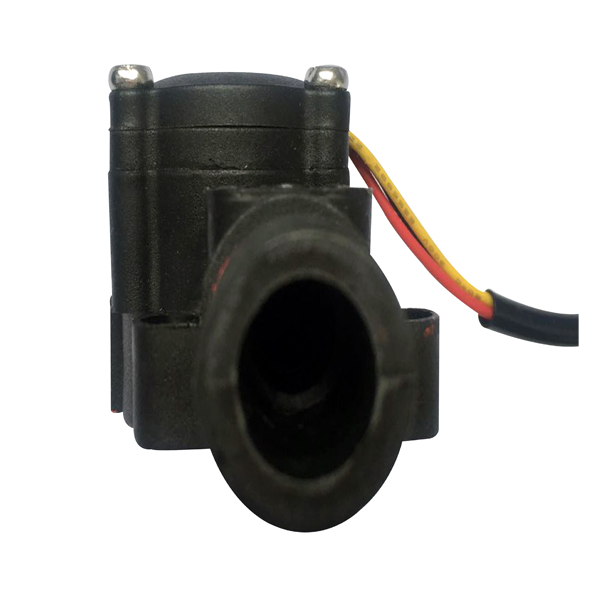

PHOTO FOR FLOW METER
