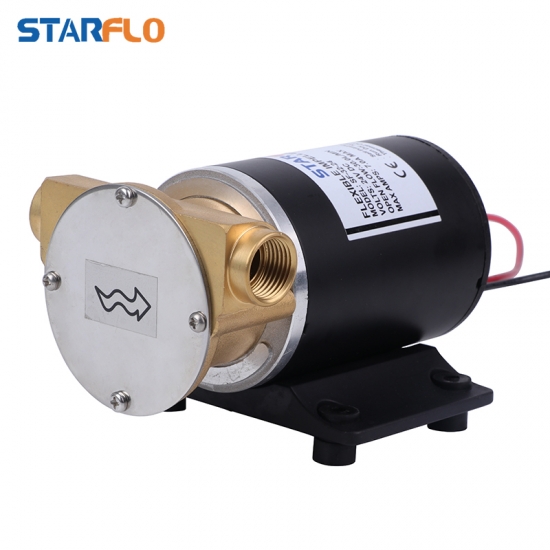

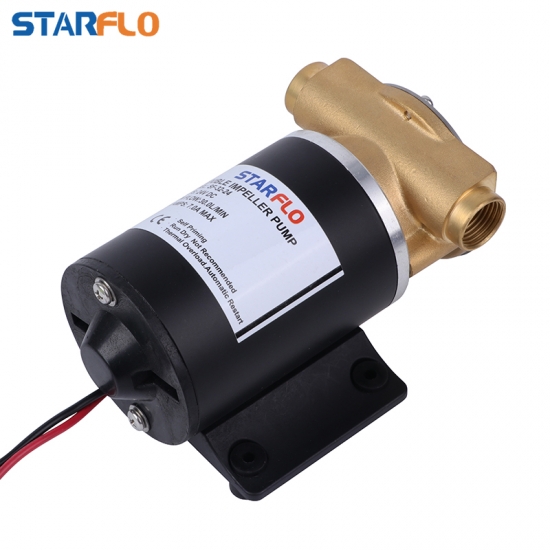

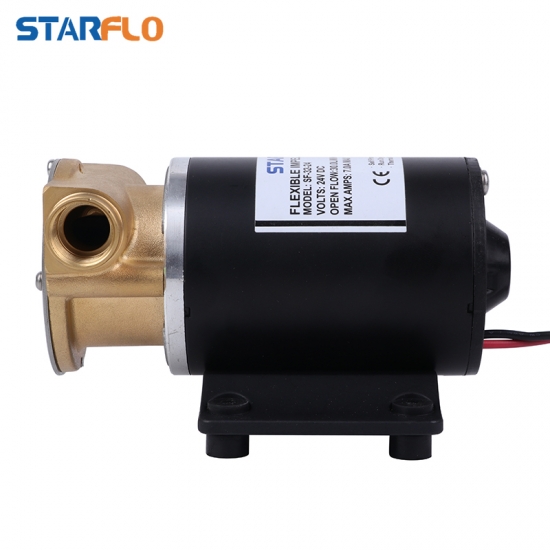

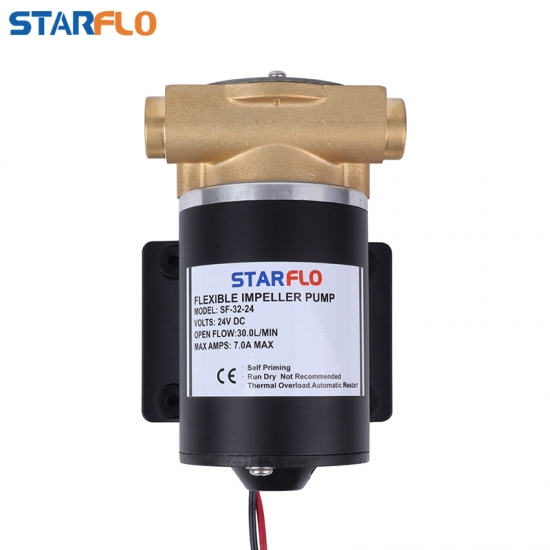

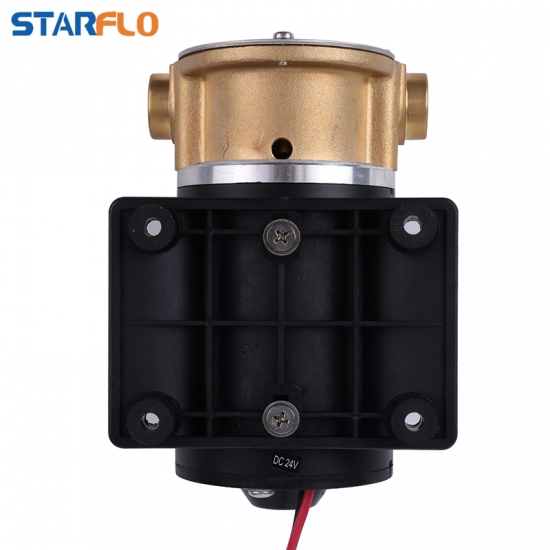

24v Water Pump Brass Impeller
PRODUCT DESCRIPTION
STARFLO self-priming bilge pumps are positive displacement pumps, capable of operation in either direction. Can be use widely, including drainage bilge water, sewage water and wash down deck. We use robust motors, stainless steel shafts and rugged metal gears. Our tough design provides performance that you can rely on for years.
FEATURES
Ignition protection
Thermally protected motor
Bilge pump standard
CE certificated
Small bilge debris present no problem to these brass bodied, flexible impeller pumps.
Can generate pressures up to 1 bar(15psi)
Connections: for 19mm(3/4") bore hose or 1/2" FNPT
Fuse Size: 15 AMP
Output:30 Liter/ minute(8.0 gallons/minute)
Self-priming up to 3m (10 ft) vertical lift
APPLICATION FOR PUMP
PUMP SPECIFICATION
Housing: Polypropylene
Values: Viton or EPDM
Diaphragm: Santoprene
Fasteners: Stainless Steel
Motor Shell : Coated Steel
DIMENSION DRAWING
DISEMBLE OF THIS PUMP
Sample order is very welcome to have a test, if need more technical specification, pls send email to us !
