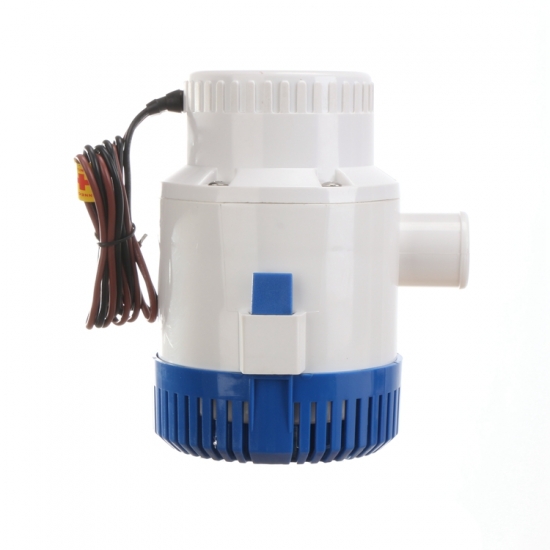

STARFLO 3700GPH 12V DC 24V DC Sailboat Marine Boat Electrical Bilge Pump
PRODUCT DESCRIPTION
Heavy duty motors with stainless steel shafts and tough thermoplastic bodies;
Totally submersible and ignition protected;
To all existing safety standards;
Water cooled motors for long life, with anti airlock design and moisture tight seals;
Snap-lock strainer base for easy installation and removal, and silent vibration free running;
No burn out if run dry;
Ideal flow sensor for bilge pumps
Latest design includes a removable base for easy cleaning and servicing
Heavy Duty flow switch is designed for the toughest applications
Environmentally responsible.
Turns pump on when water level reaches 2"(51mm)
Turns pump off when water level reaches 3/4"(19mm)
APPLICATION
Marine especially for boats, yahct or caravan;
Ponds, pools, spas and other applications where you have to remove water from limited space
FEATURES
Large delivery volume, high delivery pressure, at a maximum for its class;
Long life motor and unique motor cooling system enables continuous running in water all right;
Exclusive moisture tight seals;
Using 304 Stainless shaft, antishock PBT plastics assures long durability against saltwater corrosion;
Small size, light and compact;
Easy clean snap lock Strainer which makes for easy cleaning;
Ignition and antilock protection
CE and ISO 8849 Marine Certifications
Meet ABYC specifications
ADVANTAGES
Traditional operation by switch or float switch
Compact, efficient, long life motors
110°F (43°C) temperature limits
Easy clean snap-lock strainer bases
Anti-Airlock protection
Run dry capable for normal workloads
Exclusive moisture tight seals
Completely submersible
Marine grade blocked wiring
Stainless steel shaft
Silent and vibrationless operation
DIMENSIONS FOR 3700GPH BILGE PUMP
TECHNICAL DATA
MODEL | SFBP3700-12 / SFBP3700-24 |
FLOW RATE | 3700GPH |
VOLTAGE | 12V DC 24V DC AVAILABLE |
AMPS |
16.0A FOR 12V , 10.0A FOR 24V DC |
HEAD |
8M |
WIRE | 100CM |
NET WEIGHT / GROSS WEIGHT | 2.1KGS / 2.37 KGS |
OUTLET DIA | 40MM / 1 1/2" |
PACKING | 8PCS PER CARTON |
