12VDC MOTOR DRIVEN DIAPHRAGM PUMP
PRODUCT DETAILS
- Small size,Light weight and Stable performance
- Special valve for liquid input and output
- Antivibration pad,easy installation.
- Self-priming,Automatic Pressure Switch
- Automatic Pressure Protection
- Low Noise,with excellent resistant to chemical corrosion
APPLICATIONS
- Agriculture/Yacht / RV/Caravan pressurized water system
- Sprayer fixture (Vehicle-mounted sprayer, electric sprayer)
- Cleaning machine, Humidifier, Water purification, Medical apparatus
- Food beverage filling & liquid transfer
- Any other pressurization system
FEATURES
- It can be used for low flow rate while high pressure requirements in situation as:
- Water purification
- Filtration systems
- Chemical metering
- High pressure fluid transfer
-
Food grade beverage filling equipment
FUNCTION
- High flow rate and low presurre requirements.
- Automatic electric water pump,working rate 1.8-2.5meters,max flow rate more than 5 meters.
- Water purification,filter machine,chemical metering and fluid supply.
- Food,Beverage filling and transfer
- Controled by pressure switch.
- Water purification,filter machine,chemical metering and fluid supply.

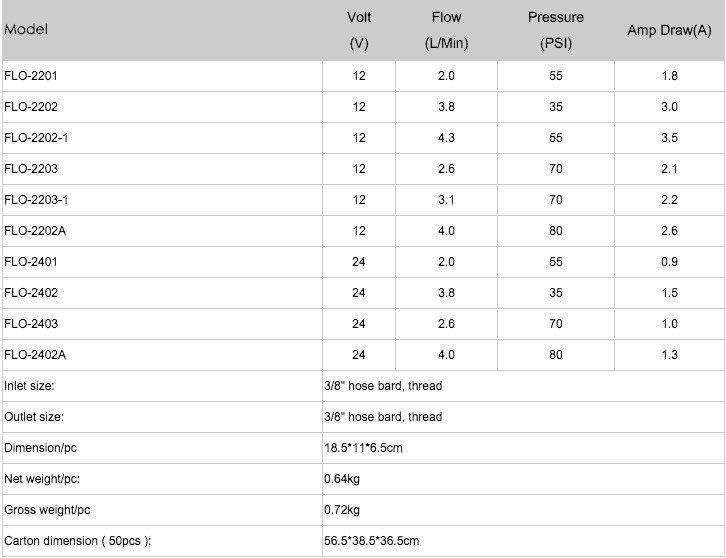

TECHNICAL DATA
MATERIALS OF CONSTRUCTION
Motor Housing: |
Nylon 6/6 |
Pump Housing: |
Polypropylene |
Valves: |
Viton |
Diphragm: |
Santoprene |
Fasteners: |
Stainless steel and zinc plated |
Motor Shell: | Coated Steel |
- Backed STARFLO's 1-Year Warranty!
- Colors:Black or required
HOW A DIAPHRAGM PUMP WORKS
The pump is driven by an AC or DC motor
In front of the motor is a valve assembly containing two to five valve pump chambers. Each valve chamber has a diaphragm behind it in the lower pump housing.
As the motor shaft turns, an internal cam positioned behind the diaphragms causes the diaphragms to be pushed forward, then back in a continuous sequence
creating a suction. As this suction builds, fluid is pulled through the inlet, through the various valve chamber check valves to the outlet
The volume of flow is determined by several factors including: the number and size of the pump chambers, cam offset, operating pressure, fluid viscosity
