5 Gallon Bottled Drinking Water Hand Pump Dispenser

PRODUCT DESCRIPTION

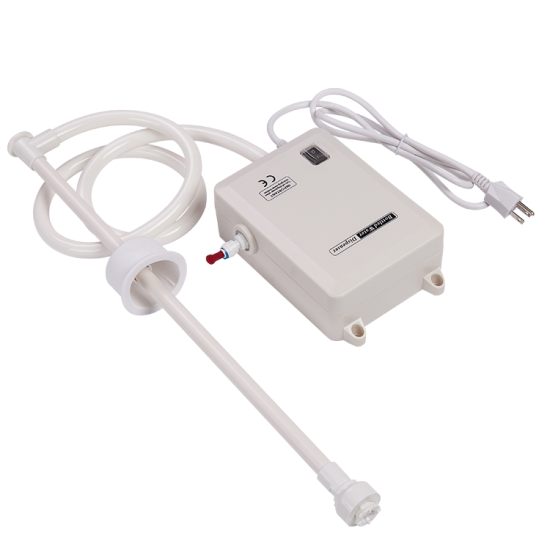

Bottled Water System 2000 Series

HOW THE SYSTEM WORKS

The 2000 Series Bottled Water System by STARFLO is designed to pump purified water from commercially available 5 gallon purified water bottles.The system will deliver the water under pressure to an individual drinking water faucet, the water inlet of a refrigerator for icemaker and chilled drinking water tap, to a faucet in portable sink and to certain personal use and commercial use coffee / tea brewers / espresso machines.

When the suction wand is inserted into the standard 5 gallon bottle, it will activate the float switch on the end of the end of the wand and turn on the pump. This same float switch shuts off the system when the bottle is empty. The wand has built in back-flow preventor valve that prevents water in the system from flowing back into the bottle, or spilling while changing bottles.

The heart of the system is the main module that automatically fills an appliance or dispenser water through a faucet when there is demand.

The system is equipped with and automatic themal cut-off device for additional protection.

TECHNICAL DATA

Model: BW2000A

Voltage: 230V AC

Current:0.25 Amps

Maximum Flow: 3.81 LPM

Maximum Pressure: 40PSI

FEATURES

• Illuminated On/Off Switch Provides clear visibility in dark cabinets or hard to reach places
• Long Life Motor Ensures years of reliable operation.
• Flojet Diaphragm Pump Provides dependable run dry capabilities, extending the life of the pump.
• Quick Disconnect Ports Allows for easy wand replacement in seconds.
• Quiet Operation Equipped with noise dampening rubber feet to minimize noise pollution.
• Thermal Protection Prevents overheating, protecting the pump and control box from damage.

PLUMBING INSTALLATION
