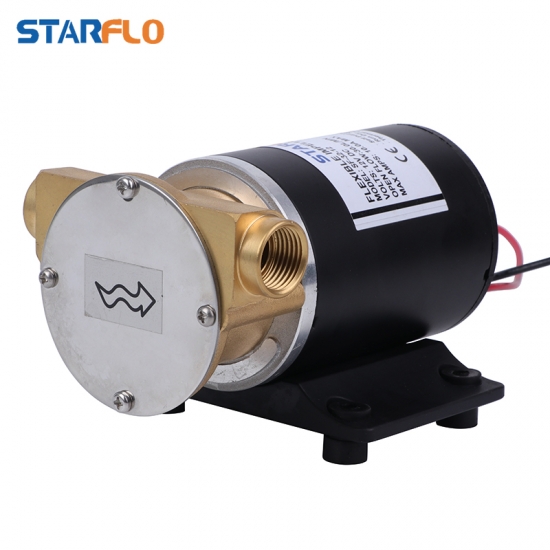

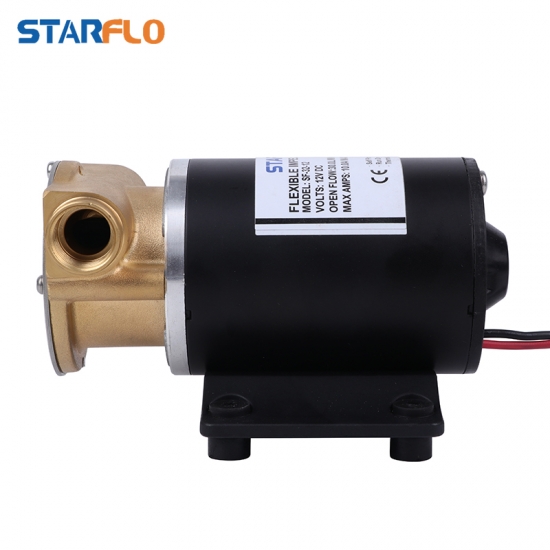

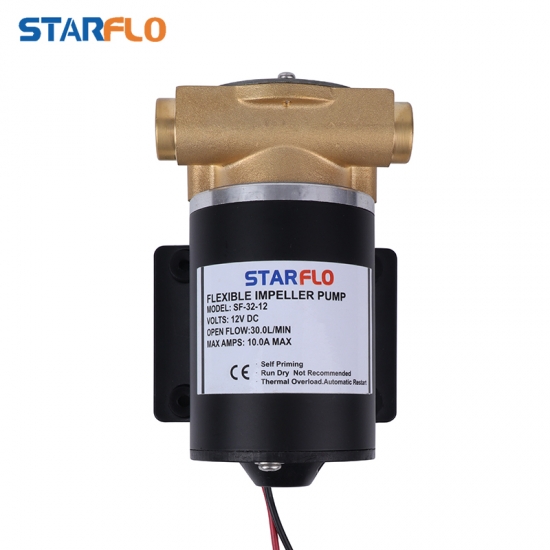

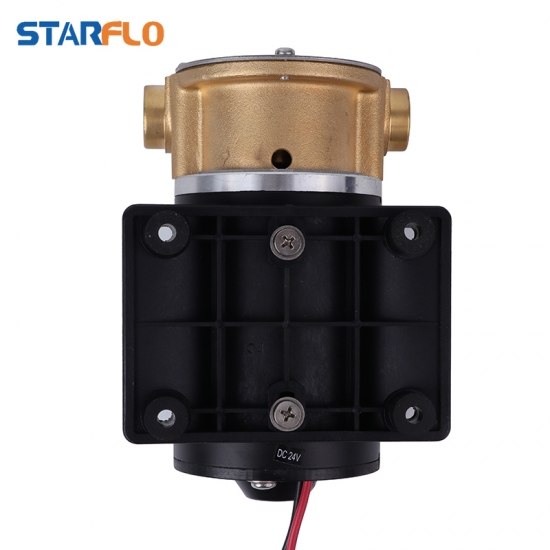

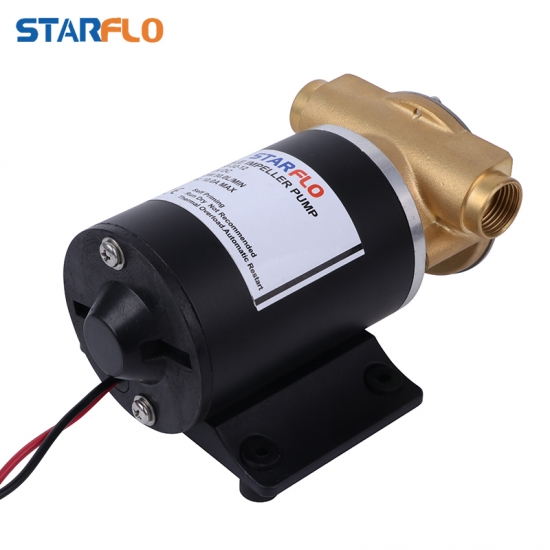

12V DC Self-Priming Engine Cooling Deck Wash Down Pump
PRODUCT DESCRIPTION
STARFLO self-priming bilge pumps are positive displacement pumps, capable of operation in either direction. Can be use widely, including drainage bilge water, sewage water and wash down deck. We use robust motors, stainless steel shafts and rugged metal gears. Our tough design provides performance that you can rely on for years.
FEATURES & BENEFITS
Seamless shell design
1/2" FNPT (13mm port)
Impeller 3.1" (80mm)
Thermally protected, high quality efficient motor
Stainless steel shaft
Priming capacity :3.2 feet (1m) suction lift
Head: 9.8 feet (3m) suction lift
Duty Circle : Intermittent
Max Amps Draw: 10A
Fuse Amps: 15 AMPS
Leads : Wire Leads
Small bilge debris present no problem to these brass bodied, flexible impeller pumps.
TECHNICAL DATA OF FLEXIBLE IMPELLER PUMP
Model
Volt
Water Flow
Max Lift
Amps
Max Draw
Packing Size
N.G/G.W(kgs)
SF-32-12
12V DC
30LPM
3M
8.0A
10.0A
215*135*110mm
2.38/2.58
SF-32-24
24V DC
30LPM
3M
5.0A
7.0A
215*135*110mm
2.38/2.58
DIMENSION OF IMPELLER PUMP
BILGE PUMP COMPONENT
REMIND
Should not be installed in a dry and ventilated position
Must not run dry, it is better to work with a bilge control panel to avoid running dry
Sample order is very welcome to have a test, if need more technical specification, pls send email to us !
