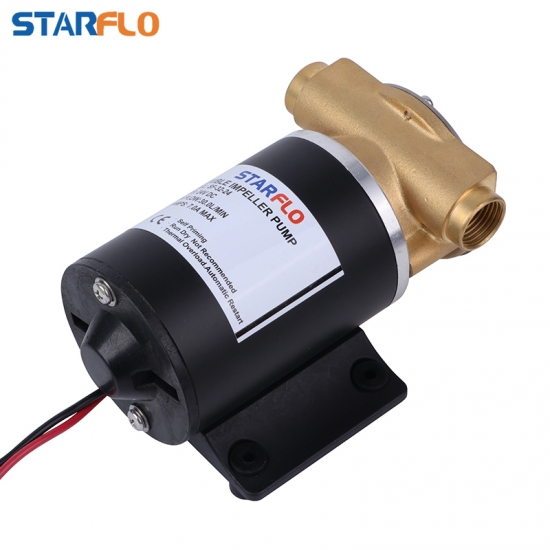

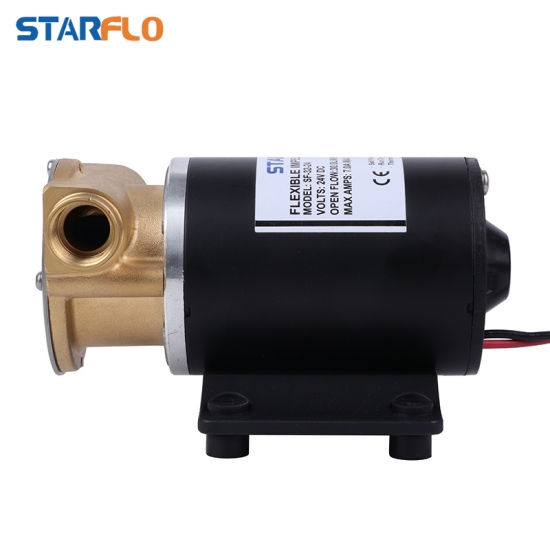

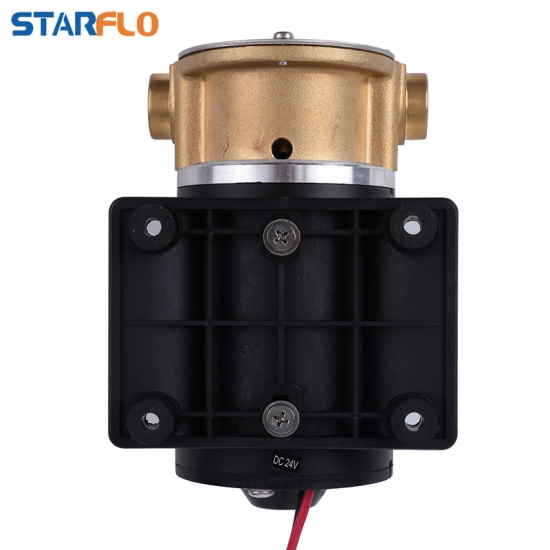

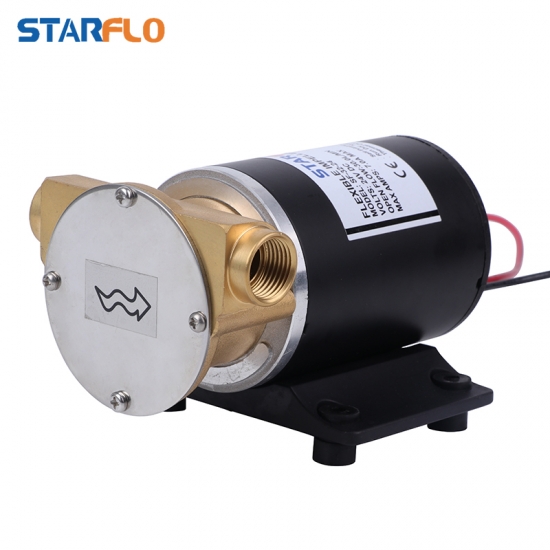

24v 30LPM Marine Spare Parts/Impeller Sea Water Pump
PRODUCT DESCRIPTION
Body Material:Bronze
Impeller:NBR Rubber
Seal:LIP Type
Ports:3/4"Female Thread(FNPT)
Voltage:12v dc/24v dc
Motor:Permanent Magnet Type Fully Enclosed Stainless Steel
Self-Priming:3.0 vertical lift
Pressure: can generate pressure up to 2 bar(30psi)
Mounting above wet bilges
Shower debris presents no problem to this bronze bodied, flexible impeller design
Simple design means fewer wearing parts-all user serviceable
Complies with USCG 183.410 and ISO 8846
MARINE (ignition Protection)
ISO 8849 MARINE (Bilge Pump Standard)
High Grade Stainless Steel motor Shaft
APPLICATIONDC pump which ideal for bilge and general liquid transfer purpose.
TECHNICAL DATA
Model
Volt
Water Flow
Max Lift
Amps(A)
Max Draw(A)
Packing Size(mm)
N.W/G.W(kgs)
SF-32-12
12V DC
30LPM
3M
8.0A
10.0A
215*135*110
2.38/2.58
SF-32-24
24V DC
30LPM
3M
5.0A
7.0A
215*135*110
2.35/2.58
Sample order is very welcome to have a test, if need more technical specification, pls send email to us !
