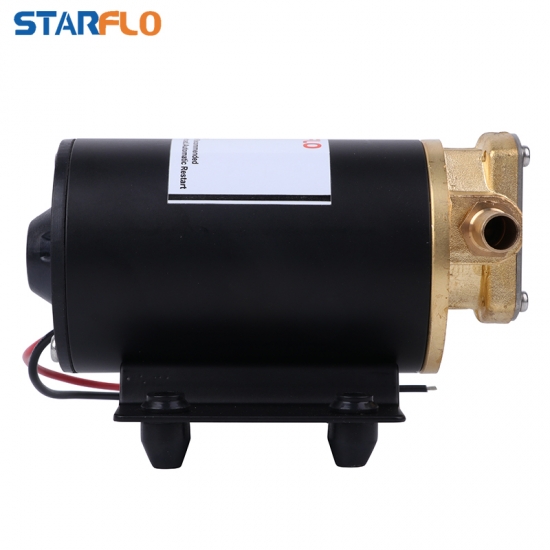

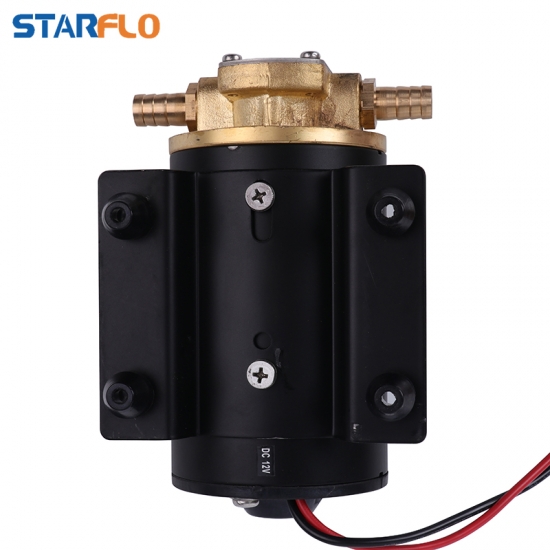

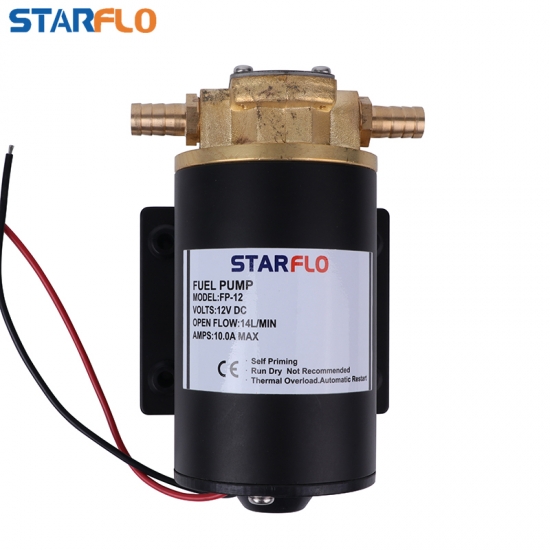

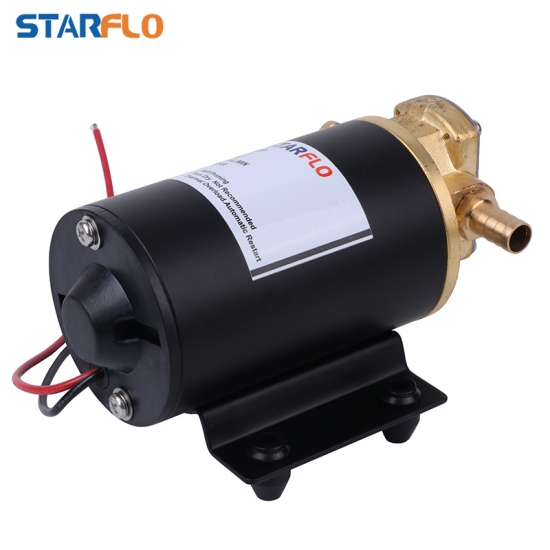

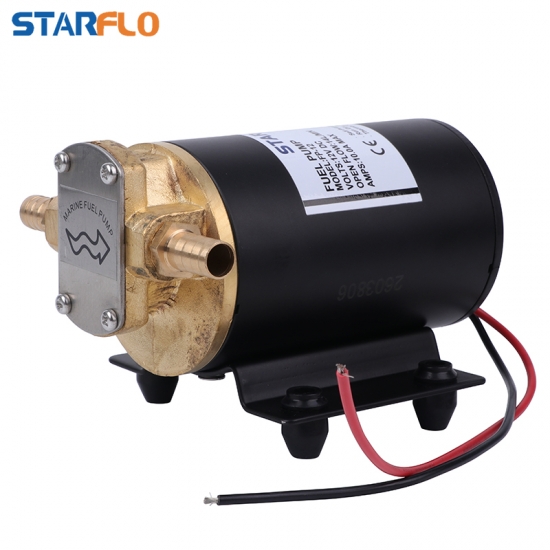

12V DC Diesel Fuel Pump
PRODUCT DESCRIPTION
The gear oil pump used to perform a variety of oil transfer applications (DO NOT USE FOR GASOLINE or other combustible fluids). We use robust motors, stainless steel shafts and rugged metal gears. Our tough design provides performance that you can rely on for years.
APPLICATION
Transmission fluid (Diesel; Lubricant; Viscous liquids)
Be able to use for water and machinery fuel(except gasoline)
Industrial use
PUMP
Bronze
Body Materials
Impeller
Neoprene compound
Seal
Lip Type
Port(s)
3/8” Female Thread,1/2”Barbed Fittings Incuded
Voltage
12 (Vdc)
Amp Draw
Max.10.0 (amp)
Fuse Size
15.0 (amp)
Motor Type
Permanent Magnet TypeFully EnclosedStainless Steel ShaftBall,Type Shaft BearingReversible
Self-priming
3.0m vertical lift
Pressure
Can generate pressures up to 2 bar (30psi)
Liquids
Lubricants and visous liquids
TECHNICAL DATA OF DIESEL PUMP
Model
Volt
Flow Rate
Max Lift
Amps
Max Draw
Packing Size(mm)
N.W/G.W(kgs)
FP-12
12V
14LPM
3M
7A
10A
215*135*110
2.48/2.68
FP-24
24V
14LPM
3M
4A
6A
215*135*110
2.48/2.68
Sample order is very welcome to have a test, if need more technical specification, pls send email to us !
