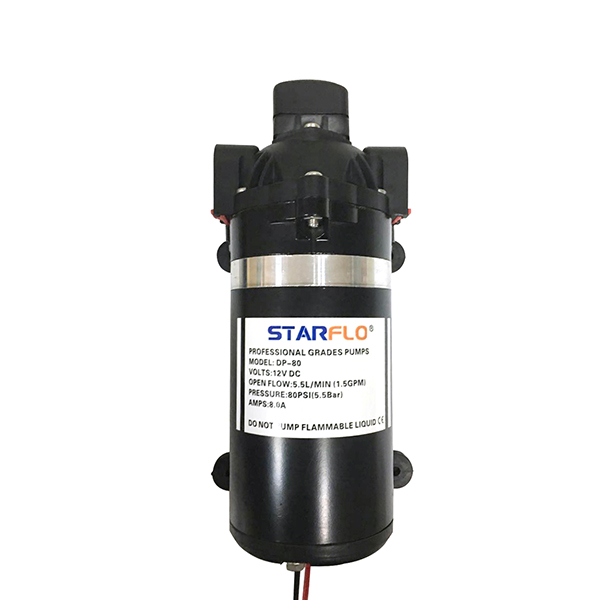

12V DC MINI ELECTRIC HIGH PRESSURE PUMP FOR CAR WASHING

APPLICATION

Agriculture/Yacht / RV/Caravan pressurized water system

Sprayer fixture (Vehicle-mounted sprayer, electric sprayer)

Cleaning machine, Humidifier, Water purification, Medical apparatus

Any other pressurization system

Backed STARFLO’s 1-Year Warranty!

Colors: Black or required

SPECIFICATIONS

• Model:DP-80
• PUMP DESIGN: Positive Displacement 3 Chamber Diaphragm Pump
• CHECK VALVE:(1-Way Operation) Prevents Reverse
• MOTOR: Permanent Magnet
• VOLTAGE: 12 VDC
• PRESSURE SWITCH: Automatic  Shut-Off Pressure Switch
•  LIQUID TEMPERATURE: 140°F (60°C) Max.
• PRIME: 6 feet (1.8 m)
• PORTS:3/8" hose barb, 1/2" NPT Female
•  MATERIAL OF CONSTRUCTION: PLASTICS- Nylon VALVES- EPDM
• Temperature limited: Motor is not equipped with thermal protection. For user safety, optimal performance, and maximum motor life, the motor surface temperature should not exceed 180°F (82°C).
• DIAPHRAGM: Santoprene
• FASTENERS: Zinc Plated Steel
• NET WEIGHT: 3.2kg
• DUTY CYCLE: Intermittent (See Temperature Rise Chart)
• TYPICAL APPLICATIONS: Industrial Spraying, Transfer

FEATURES

• Long life, no leak, quiet operation
• Positive displacement pump
• Can run dry
• Industry standard mount pattern
• Built thermal protector
• Self priming, fully automatic, easy installation
• Special valve for liquid input and output
• 12v,24vDC and 120v,230v AC motors standard(consult factory for other voltages
• Numerous fittings options for greater mounting flexibility
• High pressure diaphragm pump;
• Small size,Light weight and Stable performance;
• special EPDM valve for liquid input and output;
• Antivibration pad,easy installation with stable function;
• Self-priming,Automatic Pressure Switch;
• Automatic Pressure Protection;
• Low Noise,with excellent resistant to chemical corrosion

How a Diaphragm Pump Works

The pump is driven by an AC or DC motor

In front of the motor is a valve assembly containing two to five valve pump chambers. Each valve chamber

Has a diaphragm behind it in the lower pump housing. As the motor shaft turns, an internal cam positioned behind the diaphragms causes the diaphragms to be pushed forward, then back in a continuous sequence creating a suction. As this suction builds, fluid is pulled through the inlet, through the various valve chamber check valves to the outlet

The volume of flow is determined by several factors including: The number and size of the pump chambers, cam offset, operating pressure, fluid viscosity
