12VDC WASHDOWN PUMP SYSTEM
PRODUCT DETAILS
- Powerful automatic high pressure pump
- Self-priming 12v pump with automatic pressure switch control- Automatically turns on and off as you turn nozzle on and off
- 5.0 Gallons Per Minute capacity flow, and 70 PSI pressure
- Professional Grade Pump- Ideal for cleaning boats, fish boxes, anchor wells, dinghies, RV's, campers and caravans
- Extremely efficient, very low current draw and offer high capacity output
- Self priming
- Smooth, silent operation
- Can run dry without damage
- Thermal overload and ignition protection
- Built-in Check Valve
- Easy connecting system
- Low power draw
- Soft rubber mounts
APPLICATION
- For marine, RV, and recreational deck wash applications
- Suitable use with for fresh water or saltwater
- Designed for intermittent use only. Duty cycle: 30 mins
- Self priming 12 volt deck washdown pump delivering up to 20 litres
- per minute and pressure of up to 70psi. Incorporates a self contained shut off switch, so by connecting the outlet hose to a garden hose fitted with the pistol grip nozzle supplied, you can have high pressure water on demand by activating the nozzle.
- Powerful 5-chamber positive displacement diaphragm pump, for smooth and quiet flow.
- 18.9 Litres per minute (5 GPM) capacity flow, and high 70 PSI pressure.
- Multi-step corrosion protection and seamless motor body for enhanced protection.

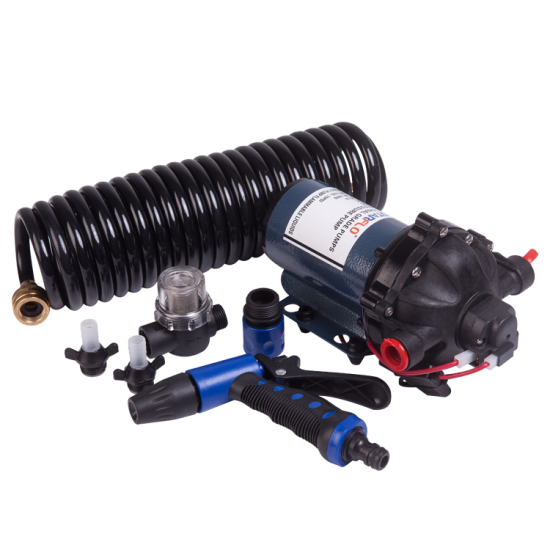

- Complete washdown pump kit with spray nozzle and coiled hose.
- Rubber mounting feet for corrosion protection and noise reduction.
- Santorprene diaphragm - Can run dry without damage.
- Thermal overload and ignition protection.
- Easy connecting system.

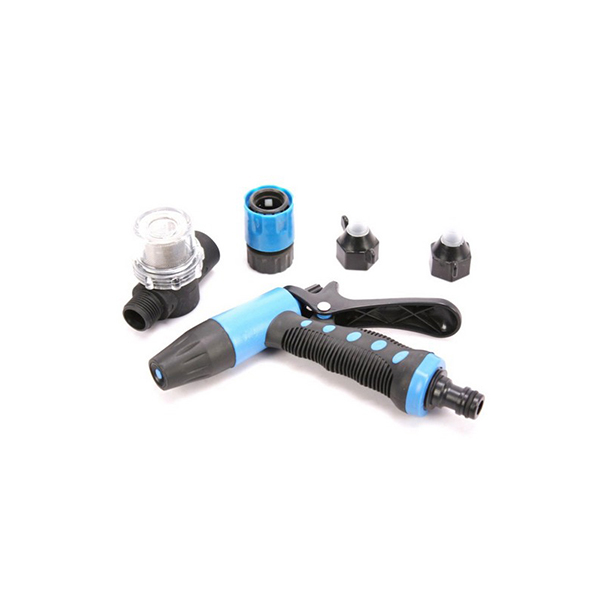

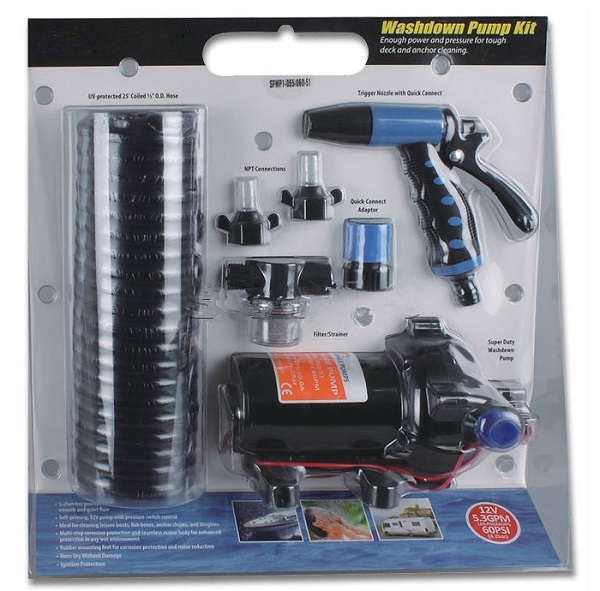

- Supplied with the following:

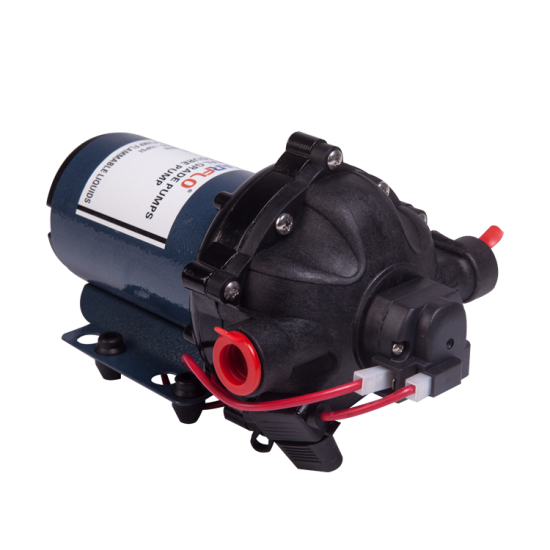

- Heavy duty washdown pump

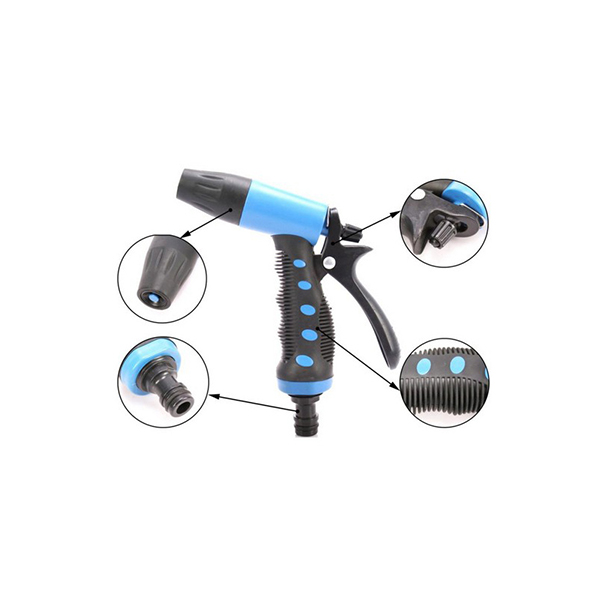

- Trigger nozzle with quick connect
- Quick connect adaptor
- UV-protected 7.5M (25') coiled hose
- 2 x NPT connectors with 12mm straight barb
- 1 x Universal saltwater filter/strainer
SPECIFICATIONS
- Voltage: 12V DC
- Flow capacity: 18.9 Litres per minute (5 Gallons per minute)
- Water pressure: 70 PSI (4.8 bar)
- Nozzle open pressure: 55 PSI (3.8 bar)
- Hose Outlets: Suits 12mm (1/2") diam. hose Twin core wire
- Current Draw: 8 Amp (max. 18 Amp)

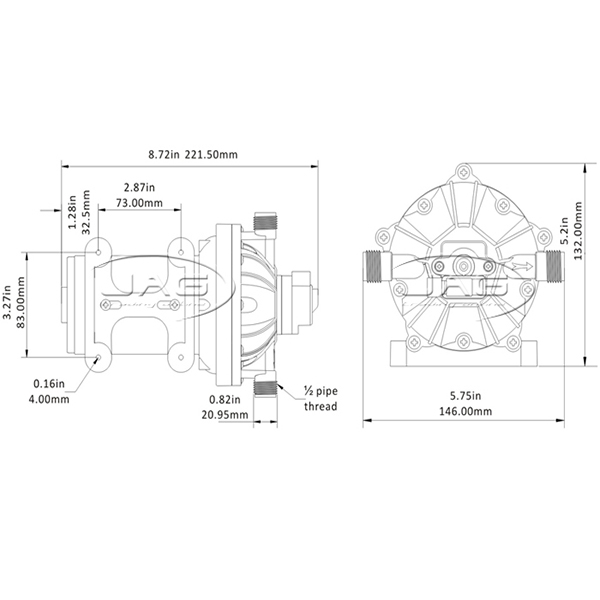

- Dimensions: Length 221mm x Width 146mm x Height 132mm
- Note: Pump motor is not waterproof and should not be exposed to external water contact - Warranty will be void if exposed to external water contact
- Approvals: CE
TECHNICAL DATA
2-pin/Leads
Model
Switch
GPM/LPM
PSI/BAR
MAX.draw(A)
Valves
Diaphragm
Ports
Voltage
Wire Connections
FL-35S
Demand
5.0/18.9
70/4.8
18
EPDM
Santoprene
1/2"-14 MNPT
12V
IMAGE GALLETY

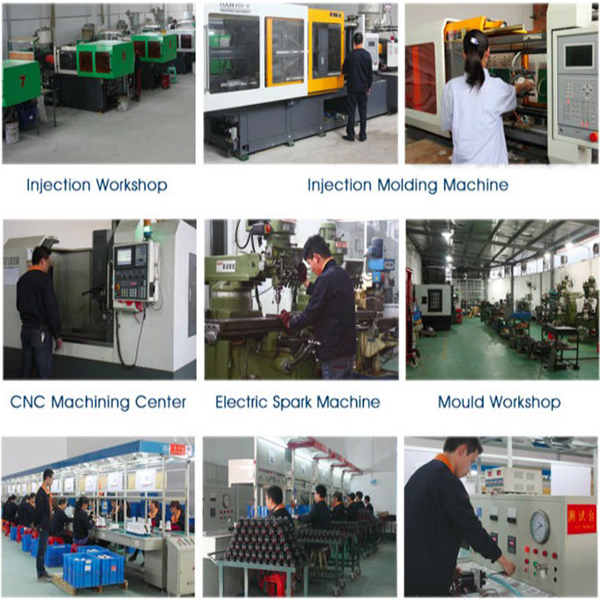

STARFLO PRODUCTION LINE
