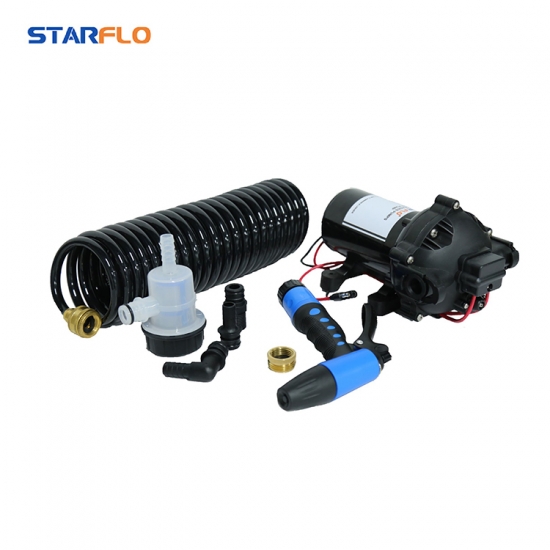

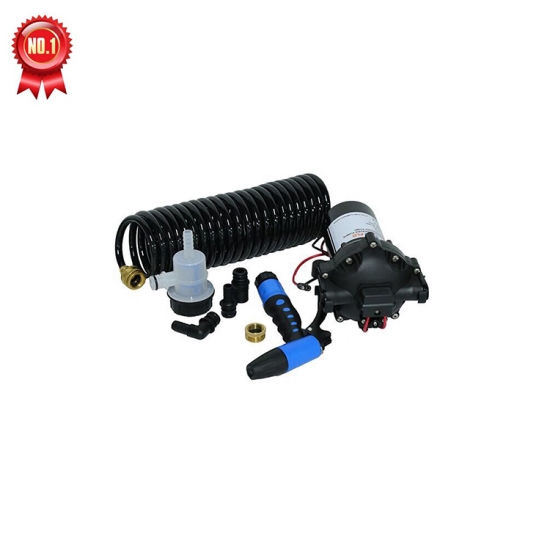

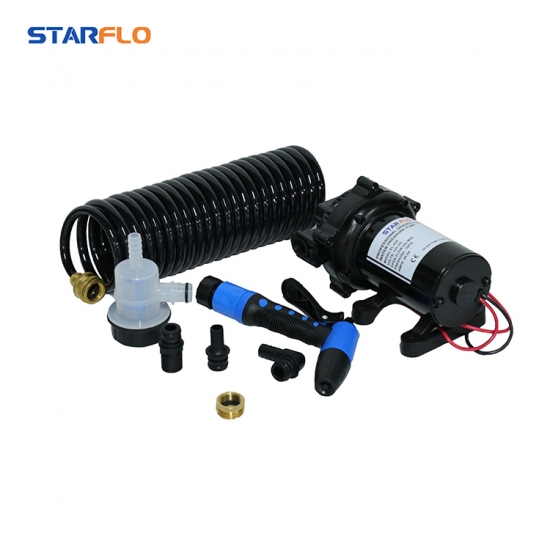

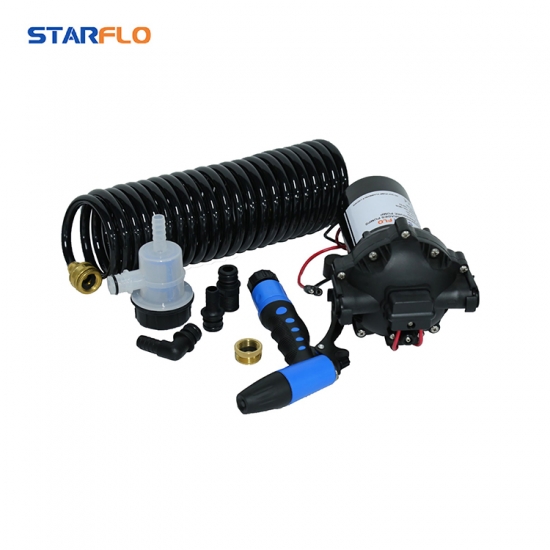

Self-Priming Marine Best Deck Boat Washdown Pump Kits
APPLICATION
- Agriculture/Yacht / RV/Caravan pressurized water system
- Sprayer fixture (Vehicle-mounted sprayer, electric sprayer)
- Cleaning machine, Humidifier, Water purification, Medical apparatus
- Any other pressurization system

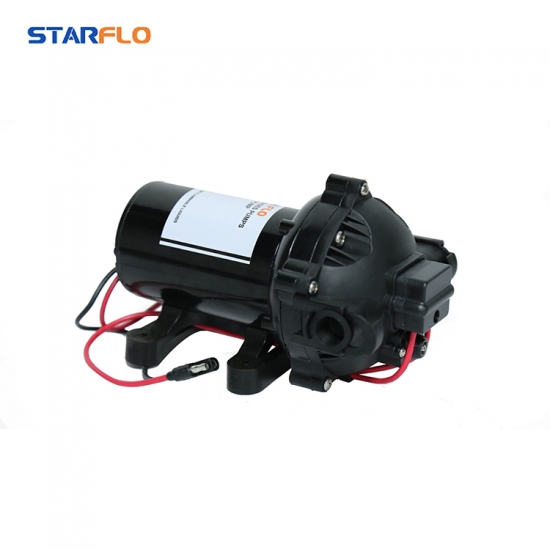

PUMP CONSTRUCTION
Housings
Polypropylene
Valves
Viton
Diaphragm
Santoprene
Fasteners
Stainless Steel
Motor Shell
Coated Steel
Mode
Demand
Certifications Option
CE Approval
Liquid Temperature
140°F (60°C) Max.
Priming Capabilities
6feet (1.8m)
Max Pressure
70psi (4.8bar)
Max Flow rate
18.9lpm (5.0gpm)
Temperature Limits
Motor is not equipped with thermal protection. For user safety, optimal performance, and maximum motor life, the motor surface temperature should not exceed 180°F (82°C).
Inlet/Outlet Ports
10/13mm pyramid hose barb, 13mm angle hose barb, 1/2 NPT thread filter for your choice.
Duty Cycle
Continous(under different pressure the continuous working time will also be different)
How a Diaphragm Pump Works
The pump is driven by an AC or DC motor
In front of the motor is a valve assembly containing two to five valve pump chambers. Each valve chamber has a diaphragm behind it in the lower pump housing. As the motor shaft turns, an internal cam positioned behind the diaphragms causes the diaphragms to be pushed forward, then back in a continuous sequence creating a suction. As this suction builds, fluid is pulled through the inlet, through the various valve chamber check valves to the outlet
The volume of flow is determined by several factors including: the number and size of the pump chambers, cam offset, operating pressure, fluid viscosity
TECHNICAL DATA
Model
Voltage
Flow rate
Max Pressure
Max Amps
Packing
N.W/G.W
FL-35S
12V
20LPM
70psi
20.0A
30*26*25.5
3.9/4.3KGS
Noted : If you need the whole set ( including pump. gun and hose) ,pls send email to us.
