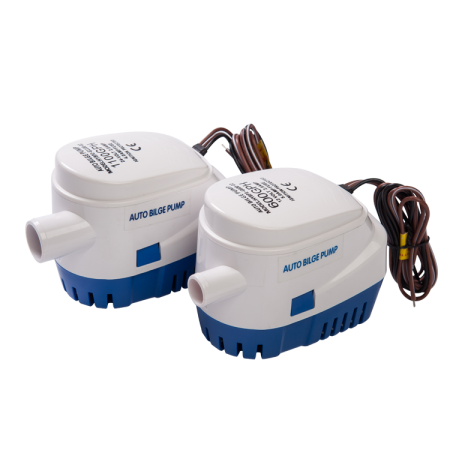

12 VDC MARINE BILGE PUMPS AUTOMATIC WITH BUILT IN FLOAT SWITCH
PRODUCT DETAILS
The STARFLO submersible auto bilge pumps are equipped with built in electronic controlled reed sensor system to make fully automatic operation easy.
No separate float switch is needed and relay loop design protect the pump against instant high current.
No power use until pump turns on when water rises. (Auto bilge pump)
All (Auto) Bilge Pumps are built with compact, rust and corrosion protected stainless steel shaft, high-impact durable and thermoplastic ABS plastic housing.
High Flow: for use from 22lpm to 234lpm (1.32-14.04 cubic meters / hour)
Small size, high efficiency, low current to achieve a small size perfect combination of high flow
Totally submersible and ignition protected with anti airlock design and moisture tight seals.
To all existing safety standard.
Snap-lock strainer base for easy installation and removal and silent vibration free running.
Run dry with no problem
APPLICATION
Typically used in boat hulls / bilges
Bait tanks
Ponds, pools, spas
Other applications where you have to remove water from
Note: These pumps are designed for intermittent use only, NOT designed for continuous use
Note: Bilge and aerator pumps must be lower than the source of water for priming
SPECIFICATION
Model: SF-G600-12
Votage: 12V DC
Amps: 2.5 A
Flow Rate: 600 GPH
Head: 2.5M
Outlet ports: 3/4" 19mm
Temperature limits: 110°F( 43°C)
Wire lead: 1m
Duty Cycle: intermittent
FEATURE
Automatic models feature a non-mercury float switch in a single, compact housing. When the float rises, the pump turns on. There is no on/off cycling and, therefore, no power use until the pump comes on. The pump remains on until the float drops and the pump senses no load against the impeller.
All-in-one pump & switch -No float switch required pump turns on when water level rises & shuts
off when water is removed
Will not pumpoil-straight motor oil that enters the bilge will not turn the pump on
Snap-off strainer for easy cleaning
Anti-fouling impeller
Available in 600&750 GPH (2271&2838 LPH) models in 12 and 24 volt versions
TECHNICAL DATA
Model
Flow Rate
Volts
Current
Head
Wire Lead
Outlet Dia
N.W/G.W
SF-G600-12
600GPH
12V
2.5A
2.5M
1M
19mm/3/4’’
0.47/0.52kg
SF-G600-24
600GPH
24V
1.5A
2.5M
1M
19mm/3/4’’
0.47/0.52kg
SF-G750-12
750GPH
12V
3.0A
3.0M
1M
19mm/3/4’’
0.47/0.52kg
SF-G750-24
750GPH
24V
1.6A
3.0M
1M
19mm/3/4’’
0.47/0.52kg
IMAGE GALLERY
