  • solar water pump

    NEW Design Stainless Steel 12V DC 12LPM Solar Water Pump

    NEW Design Stainless Steel 12V DC 12LPM Solar Water Pump STARFLO new design solar water pumps can solve your long-distance water trouble, which is a sturdy and durable water pump, it can at a maximum depth of 70 meters for your continued to provide  3 to 6 liters / minute of water flow, generally used for outdoor long-range water operating.  Solar powered submersible pump suitable for wells with a 4ich diameter or larger Designed to be strong and yet lightweight Wide-range of parts and kits for ease or rebuilding and repair Specification  Model SF1280-30 & SF2480-30  Volate 12V DC / 24V DC  Flow Rate 12LPM ( 720LPH) Amps 4.0 Max./8.0 Max Max Submersible Depth 100 Feet (30M) Max Head Lift 230 Feet (70M) Pump Design Positive Displacement 3 Chamber Diaphragm Pump Motor Permanent Magnet, Thermally Protected Internal Bypass 105-110PSI Max.(7.2-7.5 BARS) Outlet Port 1/2''(12.7mm) Barbed Fitting for 1/2'' (12.7mm) I.D.Tubing Inlet 50 Mesh Stainless Steel screen Materials High Strength Engineered Plastics, Stainless Steel Fasteners Features Long-life, 24V/12V DC Operation Strong Construction,yet lightweight (3.5kgs,6 lbs) Corrosion-proof housing with stainless-steel fasteners 50 mesh stainless steel entrance screen Dry Running capability without pump damage Easily repaired in the field State of the art solid diaphragm Stainless steel pump body keep motor good at water cooling good for long time working Read More +
  • solar water pump

    NEW Design Stainless Steel 12V DC

    STARFLO New Design Submersible Solar Water Pump STARFLO 12V DC 24V DC new submersbile solar water pump offers a solution to your remote water needs. It's rugged, durable and built to last.  This solar pump delivers a steady 1.0 GPM operation at 100 PSI maximum at 230 feet (70.1 m) It incorporates a unique waterblocked cable connector that is impervious to water leakage and condensation problems preventing waterwicking.  Great for applications in livestock watering, irrigation, ponds, islands, remote homes and cabins. Specification  Model SF1280-30 & SF2480-30  Volate 12V DC / 24V DC  Flow Rate 12LPM ( 720LPH) Amps 4.0 Max./8.0 Max Max Submersible Depth 100 Feet (30M) Max Head Lift 230 Feet (70M) Pump Design Positive Displacement 3 Chamber Diaphragm Pump Motor Permanent Magnet, Thermally Protected Internal Bypass 105-110PSI Max.(7.2-7.5 BARS) Outlet Port 1/2''(12.7mm) Barbed Fitting for 1/2'' (12.7mm) I.D.Tubing Inlet 50 Mesh Stainless Steel screen Materials High Strength Engineered Plastics, Stainless Steel Fasteners Features Long-life, 24V/12V DC Operation Strong Construction,yet lightweight (3.5kgs,6 lbs) Corrosion-proof housing with stainless-steel fasteners 50 mesh stainless steel entrance screen Dry Running capability without pump damage Easily repaired in the field State of the art solid diaphragm Stainless steel pump body keep motor good at water cooling good for long time working Read More +
Products
FL-30 10LPM 17PSI Rv Pumps 12 volt Marine Water Pump
  • Brand:

    STARFLO
  • Item NO.:

    FL-30
  • Payment:

    TT , WESTERN UNION, PAYPAL
  • Product Origin:

    Fujian,China(Mainland)
  • Shipping Port:

    FUZHOU,XIAMEN ,SHANGHAI PORT
  • Lead Time:

    2-3 days for sampel,7-10 working days fo
Inquire
  • Product Detail

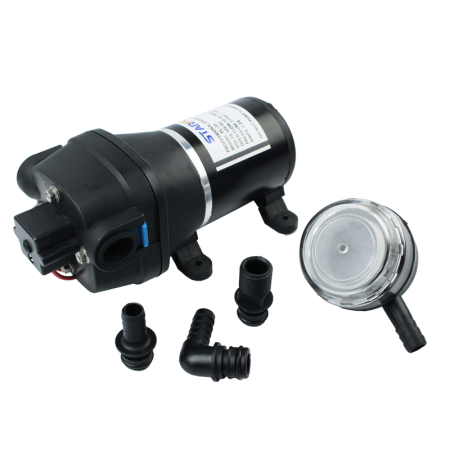

 RV On Demand Water Pump 12v Water Pump Marine

PUMP DESCRIPTION

Perfect for caravans, boats, motorbikes, trucks and camping. Use it with fresh or salt water with your deck wash

or to run your toilet or shower. These pumps automatically turn themselves on and off when you turn the tap on and off.

Comes with filter and fittings. hese pump are for intermittent use only.

A great pump for those country folk, with a small family, on tank water who only need to boost the pressure from a tank next to the house.

We have tested these pumps and found they will operate to a 2 metre suction lift and 5 metre head with no problems.

 Light weight and made from corrosion resistant materials which are suitable for fresh water, sea water, salt water, bilge  water, beverage and chemical transfer.

  •    Build in Pressure Switch (monitors system pressure and flow and turns pump on and off automatically.
  •    When taps are either opened or closed, it adjusts the flow rate and pressure, keeping these constant.)


APPLICATION OF 12 Volt DC Pump

  • Agriculture/Yacht / RV/Caravan pressurized water system
  • Sprayer fixture (Vehicle-mounted sprayer, electric sprayer)
  • Cleaning machine, Humidifier, Water purification, Medical apparatus
  • Food beverage filling & liquid transfer
  • Any other pressurization system



FEATURES OF MINI WATER PUMP

  • Small size,Light weight and Stable performance.
  • Special valve for liquid input and output.
  • Antivibration pad,easy installation.
  • Self-priming,Automatic Pressure Switch.
  • Automatic Pressure Protection.
  • Low Noise,with excellent resistant to chemical corrosion.
  • 12months warranty.
  • Automaticly turns on and off.
  • Comes with filters and fittings.


FUNCTIONS OF DIAPHRAGM WATER PUMP

  • High flow rate and low presurre requirements.
  • Automatic electric water pump,working rate 1.8-2.5meters,max flow rate more than 5 meters.
  • Water purification,filter machine,chemical metering and fluid supply.
  • Food,Beverage filling and transfer.
  • Controled by pressure switch.

TROUBLESHOOTING

WARNING:BEFORE SERVICING PUMP,CLOSE SEA COCK,TURN OFF POWER AND DRalN WATER FROM HOSES!!

 Failure to Prime-Motor operates, but no pump discharge

  • Restricted intake or discharge line
  • Air leak in intake line
  • Debris in pump
  • Punctured pump diaphragm(pump leaks)
  • Crack in pump housing

Motor fails to turn on

  • Blown fuse
  • Pum circuit has no power
  • Loose wiring connection
  • Defective motor

Low Flow and Pressure

  • Air leak at pump intake
  • Acuummulation of debris inside pump and plumbing
  • Wom pump bearing(excessive noise)
  • Punctured pump diaphragm(punop leaks)
  • Defective motor

Pulsating Flow

  • Restrocted pump delivery.Check discharge lines,fittings and valves for clogging or undersiszing.

TECHNICAL DATA OF SMALL 12V DC WATER PUMP



Sample order is very welcome to have a test, if need more technical specification, pls send email to us !
